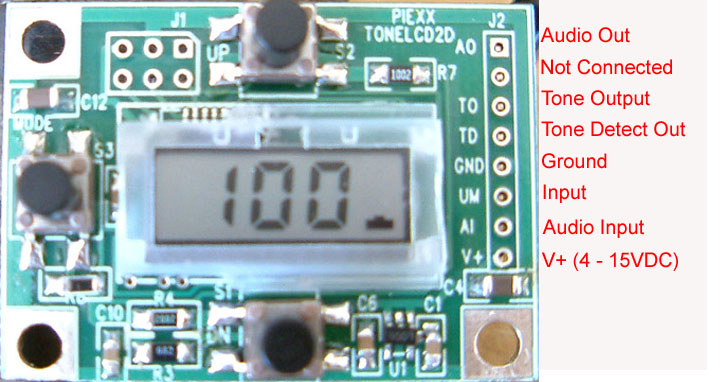

If you are like me, you hate looking up dipswitch settings for tone encoder / decoder boards. The design goal that motivated the ToneLCD was to come up with a miniature, full feature CTCSS encoder / decoder that was easy to use. The ToneLCD is a small, 1.125 x 1.7 inches, easy to use, full-featured tone board that has a miniature LCD that displays the operating tone! The PIEXX ToneLCD will allow you to add CTCSS encode and decode features to virtually any transceiver.
Features:
Encoder / Decoder for both transmit encode and receive tone squelch decode operation.
Find mode detects CTCSS tone that the receiver hears for automatic operation.
Small size, 1.3 x 1.8"
Low power consumption
Operates from 4-15VDC
Dedicated detect output as well as audio path switch.
Easy to Operate
Fully configurable Power Up State
Download the Full ToneLCD Documentation in .PDF format!
